Automatic tire pressure control on the move to optimize tire pressures depending on terrain, load as sensing vehicle speed and monitoring tire pressure to increase tire life and fuel economy, while reducing down time and maintenance costs due to flat tires. Tire pressure maintenance can decrease the possibility of tire failures and increase safe operation for the vehicle driver and other drivers on the road.
The system parts can be simplified by the model of vehicle.
CONTROLLER
Operation control
Terrain Mode
Payload Mode
Emergency Mode
MANIFOLD
Control air in and out
Seperate structure
Independent air path to
each wheels
AIR TANK
1.5x High pressurized
Storing tank
Max pressure 25Kg/㎠
Customizable
COMPRESSOR
Max pressure 200 PSI
Weight 9Kg ( 20 lbs )
Size 106*276*172
ADAPTIVE HUB
Direct air path to wheel
Simple mounted path
No external wheel valve
Balanced wheels
STABILITY SENSOR
Stability Control
Dual Output
( Analog + Digital )
Customizable
Operation
Easy to control tire pressure on road conditions on the seat while driving.
Terrain ( 4 Mode ) - Follow the set pressure of vehicle model
-
Highway
-
Cross Country
-
Mud/Snow/Sand
-
Emergency - Constant inflation against punctured or leaking tire Available to Inflate spare tires
Load ( 3 Mode )
-
No Load
-
Half Load
-
Full Load
Air Path Hub
-
Vehicle with Hub - Do not need air path hub for CTIS installion.
-
Vehicle with no Hub - Just mount TOPSYS's adaptive hub for air path to wheels.
Benefites
Variable road conditions
-
Control to optimize the tire pressure by driving environment to secure passenger's safety and enhance comfort ride.
ex ) Highway onto Snow road : Deflating tires automatically or pushing a button on the seat while driving
Overcome tire malfunction
-
Prompt move to a safe place from stuck on the road by punctured, nailed tire.
ex ) Free from dangerous stop on the highway by tire malfunction and the second critical accident.
Emergency mode supports to safely move to a service center which checks and repair the tires.

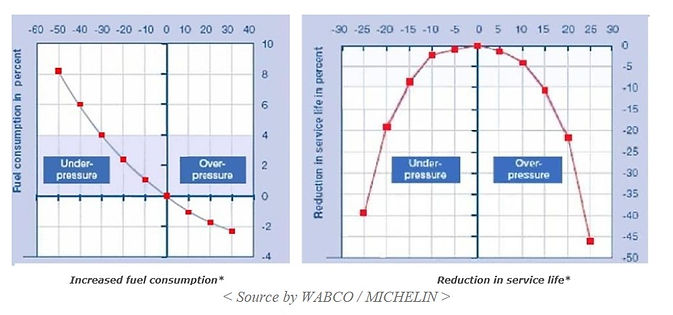

Economic effects
-
Proper pressure reduces the tire wear 20% and increases the tire life over 10%
-
Proper pressure reduces the fuel consumption over 10% and enhances fuel efficiency 3~5%
-
Enhance traction over 25% and increase the productivity
-
Proper pressure makes longer life time of the vehicle components
CTIS
( Central Tire Inflation System )
CONTROLLER
MANIFOLD
AIR TANK
AIR TANK
AIR COMPRESSOR
ADAPTIVE HUB
ADAPTIVE HUB
